Docker 镜像体积缩小测试

探究 Dockerfile 中的各个操作究竟对最终的镜像大小有多大的影响，并给出减小镜像体积的技巧

基础镜像

这里采用 ctf-docker-template/web-lnmp-php73 at main · CTF-Archives/ctf-docker-template 作为研究对象

原始的 Dockerfile 为

FROM ubuntu:22.04

ARG DEBIAN_FRONTEND=noninteractive

RUN sed -i 's@//.*archive.ubuntu.com@//mirrors.ustc.edu.cn@g' /etc/apt/sources.list

RUN sed -i 's@//.*security.ubuntu.com@//mirrors.ustc.edu.cn@g' /etc/apt/sources.list

RUN apt-get update

# install apache2

RUN apt-get install -y apache2 libcap2-bin

RUN setcap 'cap_net_bind_service=+ep' /usr/sbin/apache2

# install php

RUN apt-get install -y php libapache2-mod-php

# As apache is never run as root, change dir ownership

RUN a2disconf other-vhosts-access-log
RUN chown -Rh www-data:www-data /var/run/apache2
RUN chown -Rh www-data:www-data /var/log/apache2

# Setup Apache2

RUN a2enmod rewrite headers expires ext_filter
COPY ./config/apache2.conf /etc/apache2/apache2.conf

# Copy source page code

COPY ./src/a.php /var/www/html/a.php

RUN echo "root:yourpassword" | chpasswd

EXPOSE 80
USER www-data

ENTRYPOINT ["apache2ctl", "-D", "FOREGROUND"]

其中唯一的外部文件为 a.php

a.php

<?php
    phpinfo();
?>

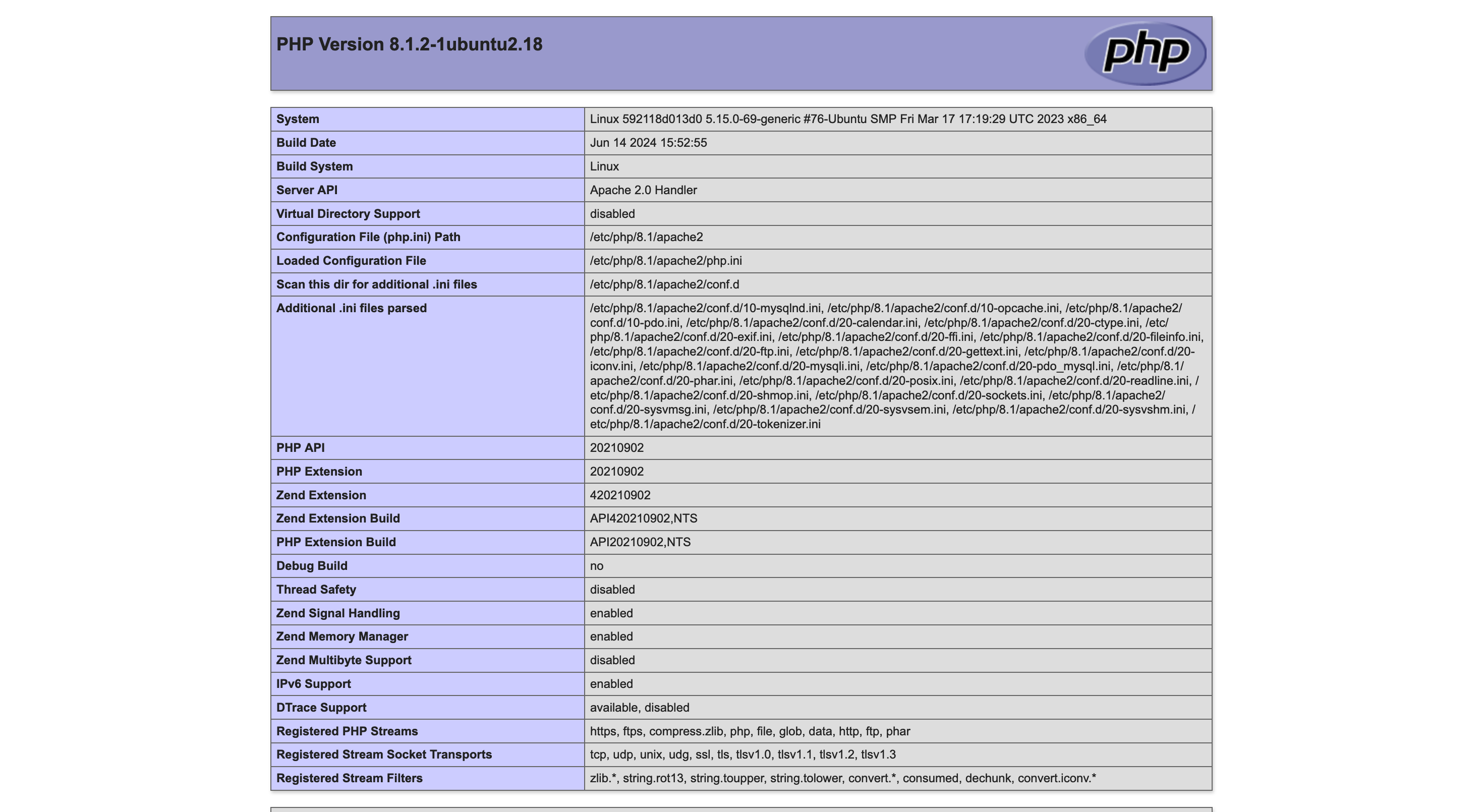

可以看到服务正常运行，正常显示了 phpinfo

此时 docker 编译出来的镜像大小为 268MB

对 apt 操作进行优化

首先，现将所有的 apt-get install 操作优化为一步执行，优化后的镜像大小为 267MB

然后，在执行 apt-get install 阶段，制定最小化安装，也就是不安装推荐的软件包，即 --no-install-recommends 参数，优化后的镜像大小为 264MB

其次，在执行完 apt-get install 操作之后，就可以删除 apt 包缓存和包索引了，即 apt clean 和 rm -rf /var/lib/apt/lists/* 命令，优化之后的镜像大小为 264MB

此时的 Dockerfile 为

FROM ubuntu:22.04

ARG DEBIAN_FRONTEND=noninteractive

RUN sed -i 's@//.*archive.ubuntu.com@//mirrors.ustc.edu.cn@g' /etc/apt/sources.list

RUN sed -i 's@//.*security.ubuntu.com@//mirrors.ustc.edu.cn@g' /etc/apt/sources.list

RUN apt-get update

# install apache2

RUN apt-get install -y --no-install-recommends apache2 libcap2-bin php libapache2-mod-php

RUN apt clean

RUN rm -rf /var/lib/apt/lists/*

RUN setcap 'cap_net_bind_service=+ep' /usr/sbin/apache2

# As apache is never run as root, change dir ownership

RUN a2disconf other-vhosts-access-log
RUN chown -Rh www-data:www-data /var/run/apache2
RUN chown -Rh www-data:www-data /var/log/apache2

# Setup Apache2

RUN a2enmod rewrite headers expires ext_filter
COPY ./config/apache2.conf /etc/apache2/apache2.conf

# Copy source page code

COPY ./src/a.php /var/www/html/a.php

RUN echo "root:yourpassword" | chpasswd

EXPOSE 80
USER www-data

ENTRYPOINT ["apache2ctl", "-D", "FOREGROUND"]

对 RUN 多步操作进行压缩

由于每一个操作关键词 RUN, COPY 等都会在 image 中增加一个 layer 记录，带来额外的空间占用，所以可以对多个 RUN 语句进行整合

优化后的 Dockerfile 为

FROM ubuntu:22.04

ARG DEBIAN_FRONTEND=noninteractive

RUN sed -i 's@//.*archive.ubuntu.com@//mirrors.ustc.edu.cn@g' /etc/apt/sources.list && \
    sed -i 's@//.*security.ubuntu.com@//mirrors.ustc.edu.cn@g' /etc/apt/sources.list && \
    apt-get update && \
    apt-get install -y --no-install-recommends apache2 libcap2-bin php libapache2-mod-php && \
    apt clean && \
    rm -rf /var/lib/apt/lists/* && \
    setcap 'cap_net_bind_service=+ep' /usr/sbin/apache2 && \
    # As apache is never run as root, change dir ownership
    a2disconf other-vhosts-access-log && \
    chown -Rh www-data:www-data /var/run/apache2 && \
    chown -Rh www-data:www-data /var/log/apache2 && \
    # Setup Apache2
    a2enmod rewrite headers expires ext_filter

COPY ./config/apache2.conf /etc/apache2/apache2.conf

# Copy source page code and configure user

COPY ./src/a.php /var/www/html/a.php
RUN echo "root:yourpassword" | chpasswd
EXPOSE 80
USER www-data

ENTRYPOINT ["apache2ctl", "-D", "FOREGROUND"]

优化之后的镜像大小为 209MB
